Pipe fitting dismantling joint

Basic Info


Model No.: DN50-DN600


Product Description

  • Dismantling Joints are particularly suitable for simplifying the installation & removal of isolation valves, control valves, check valves, non-return valves, flow metering valves, pump sets, pressure reducing valves, flanged pipe & fittings.
  • Designed and manufactured to BS EN ISO 9001: 2008 and tested to the most exacting requirements of WRAS (Water Regulatory Advisory Scheme) for use with potable water.
  • Developed for Complete Versatility

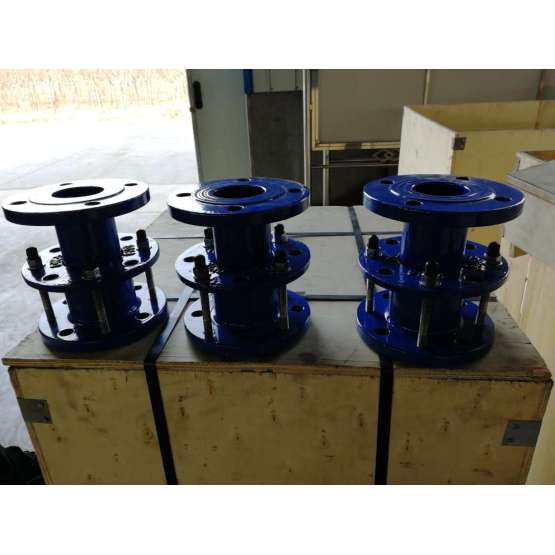

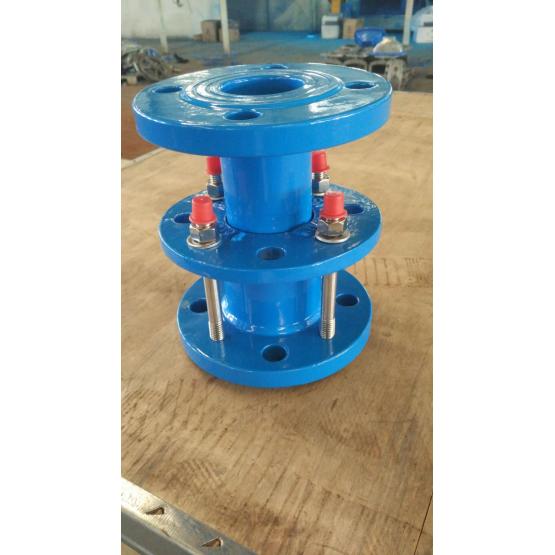

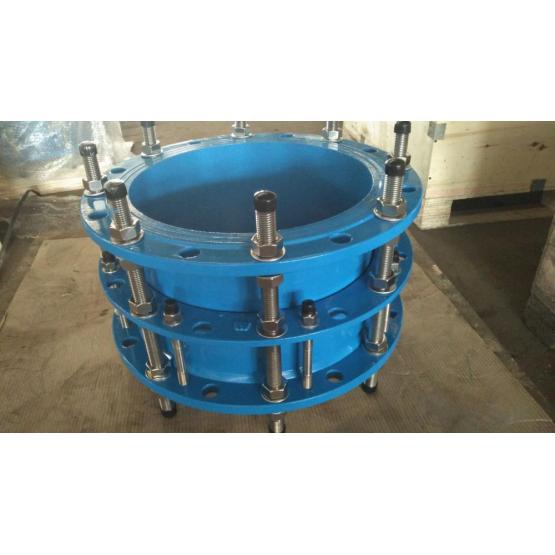

    The Dismantling Joints are double flanged fittings that accommodate up to 100mm (4") longitudinal adjustment and can be locked at the required length with the tie bars supplied. Not only does this system allow for fast, easy maintenance of valves, pumps or meters, it simplifies future pipe work modifications and reduces downtime when changes need to be made.

    Easy to Install

    The installation is also straightforward using just a spanner and torque wrench to tighten the high tensile steel or stainless steel tie bars. With fewer tie bars than flange holes and the tie bars acting as flange jointing bolts theprocess is speeded up but still offers a secure, rigid, fully endload resistant system with a pressure rating equal to that of the flange.

    The Range

    A comprehensive range is available from DN40 (1½") to DN2400 (80") with virtually any flange drilling or pressure rating supplied, although larger sizes and custom made Dismantling Joints can be designed and built on request.Ductile Iron Bend, Ductile Iron Tee, Ductile Iron Grate, Ductile Iron Elbow, Ductile Iron Straight Pipe, Ductile Iron PU Straight Pipe exporter, our Ductile Iron Cross are good in quality and competitive in price.


    We specially manufacture and supply ductile iron pipe fitting with high quality ductile iron EN-GJS-450-10,black bituminous paint coating and cement lining,and we can also painting according to clients requirements.We offer these ductile iron fittings in different sizes and lengths in order to meet the various requirements of our esteemed clients.The range of ductile iron fittings meet various industrial requirements.

    *Related Products:ductile iron grate ,ductile iron elbow ,ductile iron straight pipe ,ductile iron pu straight pipe.

    China Ductile Iron Pipe supplier & manufacturer, offer low price, high quality Ductile Iron Galvanized Pipe, Ductile Iron Seamless Pipe, Ductile Weld Iron Pipe, etc.
