50% Tie Rods Double Flanged Dismantling Joint

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 50 Piece/Pieces
Delivery Time: 15 Days

Basic Info


Model No.: PSL011

Body Material: Ductile Iron

Rings Material: EPDM/NBR

Coating: Fusion Bonded Eposy

Type Test: EN14525 / BS8561

Connection Type: Flange Joint


Additional Info


Packaging: Wooden Pallent

Productivity: 5000 pieces/month

Brand: PSL

Transportation: Ocean,Air

Place of Origin: Shandong,China

Supply Ability: 5000 pieces/month

Certificate: ISO9001:2008


Product Description

About  50% Tie Rods Double Flanged Dismantling Joint With Gland PN10 PN16:

The Dismantling Joints are double flanged fittings that accommodate up to 100mm (4") longitudinal adjustment and can be locked at the required length with the tie bars supplied. Not only does this system allow for fast, easy maintenance of valves, pumps or meters, it simplifies future pipe work modifications and reduces downtime when changes need to be made.

FEATURES:
Fully corrosion resistant construction
Inside and outside fusion bonded epoxy coating
Light weight ductile iron construction design
Wide joint range
Cold galvanize carbon steel fastener
EPDM gaskets with WRAS approved
SPECIFICATION:
Type Test:EN14525/BS8561
Elastomeric:EN681-2
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01

Drilling Spec:EN1092-2

Connection for DI,Steel pipe ,

Suitable for water and neutral liquids (sewage) application
Working temperature up to 70°C

double flanged dismantling joint drawing

50 dismantling joint list

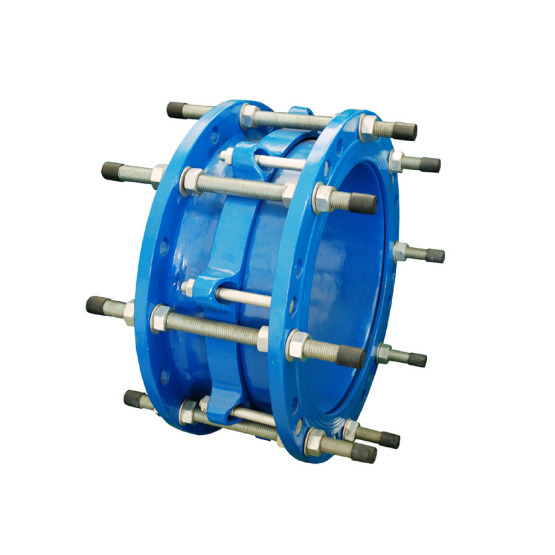

50 dismantling joint photo
