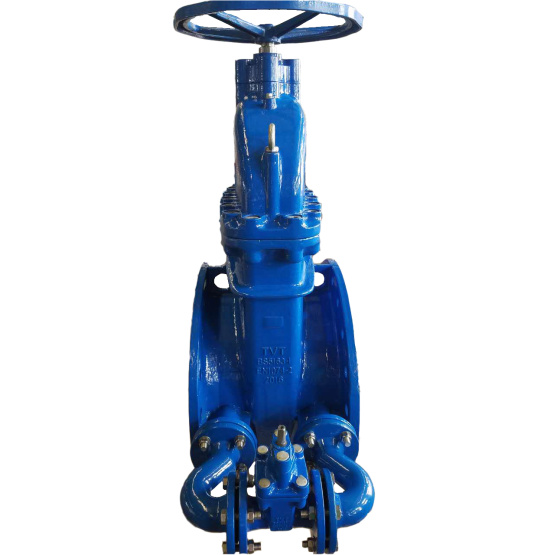

Large Diameter bypass Gate Valve

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 5 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BS5163

Type: Straight-through

Material: Cast Iron

Connection Form: Flange

Actuator: Manual

Seal Surface: Wedge Gate Valve

Thread Position of Valve Rod: Inside Gate Valve

Usage: Regulation

Standard: BSW

Application: Water Industrial Usage

Pressure: Low Pressure

Size: DN350-DN600


Additional Info


Packaging: wooden case

Productivity: 500 sets/month

Brand: PSL

Transportation: Ocean,Air

Place of Origin: Shandong,China

Supply Ability: 500 sets/month

Certificate: ISO9001-2008


Product Description

About Large Diameter Non rising Stem Resilient Seated Gate Valve:

Raythai's large diameter gate valve is a resilient seated large diameter, wedge gate valve available in sizes from DN350-600mm
and a variety of pressure ratings, suitable for use with water and neutral liquids to a maximum temperature of +70°C.

BS5163 non-rising Stem Resilient Seated Wedge Gate Valve feature:

*RAYTHAI Gate Valves are made of ductile iron and meet BS5163 requirements.

*Stainless steel stems provided as standard to eliminate bent or broken stems.

*Fully encapsulated EPDM wedge to prevent deterioration from disinfectants.

*Certified to WRAS.

*Made in China

SPECIFICATION:

1.DN:DN350-DN600

2.PN:PN10/PN16

3.Design Standard:BS5163

4.Face To Face Length:BS5163/BS EN 558-1

5.End Flange:BS4504/BSEN1092-2·GB/17241.6.ISO7005.2

5.Test:BSEN1074-1-2·GB/T13927

6.Applicable Medium:Water

7.Temperature Range:≤80°

large diameter gate valve list

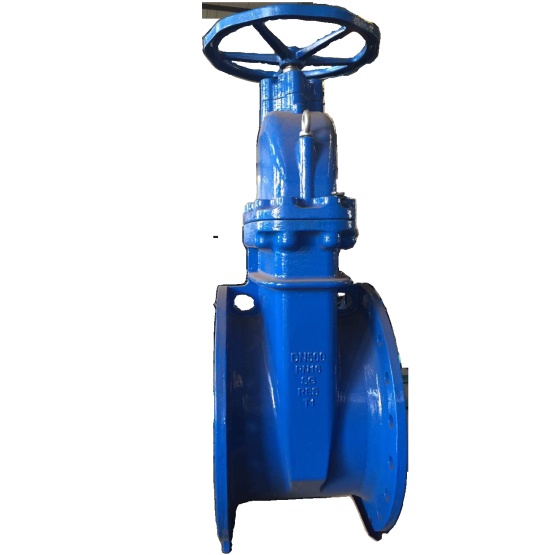

large diameter gate valve photos
