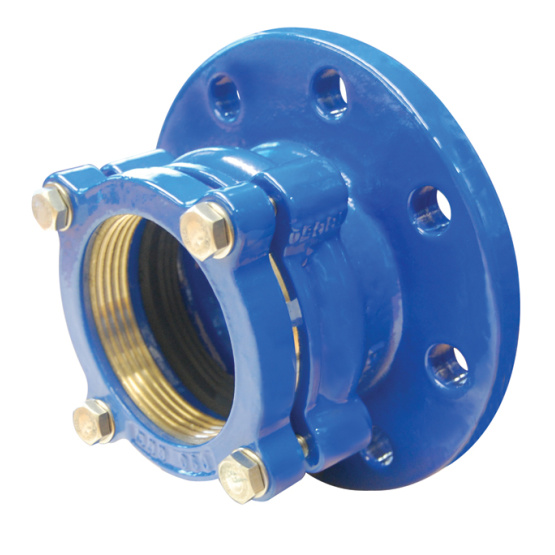

PE Restraint Flange Adaptor With Brass Thrust Ring

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 50 Piece/Pieces
Delivery Time: 15 Days

Basic Info


Model No.: PSL013

Thrust Ring: Brass

Body Material: Ductile Iron

Rings Material: EPDM/NBR

Coating: Fusion Bonded Eposy

Type Test: EN14525 / BS8561

Connection Type: Flange Joint


Additional Info


Packaging: Wooden Pallent

Productivity: 5000 pieces/month

Brand: PSL

Transportation: Ocean,Air

Place of Origin: Shandong,China

Supply Ability: 5000 pieces/month

Certificate: ISO9001:2008


Product Description

About PE Restraint Flange Adaptor With Brass Thrust Ring:
1.The restraint system is effective independent of the pipe sealing and is achieved by tightening the lock ring.
2.The pipe end can be pushed into the sealing chamber without major effort.The flat gasket is already mounted on the flange.
3.For thin-walled PE-pipes (up to 3mm wall thickness) and low internal pressure as well as the use of support liners is required.
SPECIFICATION:
Type Test:EN14525/BS8561
Elastomeric:EN681-2
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01
Drilling Spec:EN1092-2
Connection for HDPE pipe;
Working pressure: PN10/16;
Maximum temperature: -10 ~ +70;
Suitable for potable water, neutral liquids and sewage;
WRAS approved.
Corrosion resistent construction.

Flange drilling with BS or ANSI standard;

PE flange adpator drawing

PE FLANGE ADAPTOR

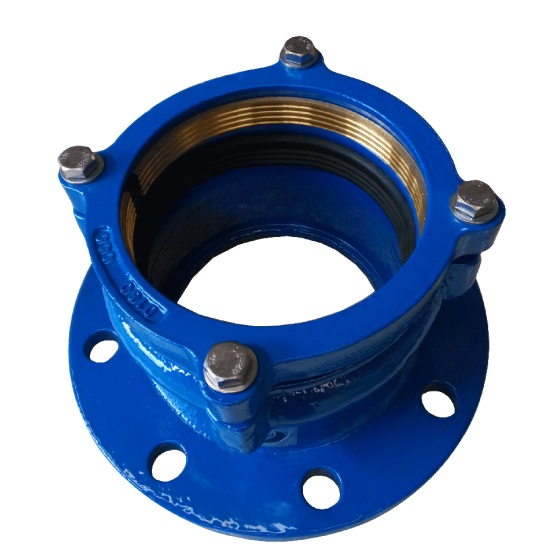

pe flange adaptor photos
