PE restrraint Flange Adaptor

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1-999999 Bag/Bags
Delivery Time: 7-20 Days

Basic Info


Model No.: DN50-DN1200

PE Restrraint Flange Adaptor & Straight Coupling: Ductile Iron Pipe Joint Flange Adaptor


Additional Info


Productivity: 1-999999

Brand: PIPESOL

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1-999999


Product Description

About PE Restraint Flange Adaptor With Brass Thrust Ring:
1.The restraint system is effective independent of the pipe sealing and is achieved by tightening the lock ring.
2.The pipe end can be pushed into the sealing chamber without major effort.The flat gasket is already mounted on the flange.
3.For thin-walled PE-pipes (up to 3mm wall thickness) and low internal pressure as well as the use of support liners is required.
SPECIFICATION:
Type Test:EN14525/BS8561
Elastomeric:EN681-2
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01
Drilling Spec:EN1092-2
Connection for HDPE pipe;
Working pressure: PN10/16;
Maximum temperature: -10 ~ +70;
Suitable for potable water, neutral liquids and sewage;
WRAS approved.
Corrosion resistent construction.

Flange drilling with BS or ANSI standard;

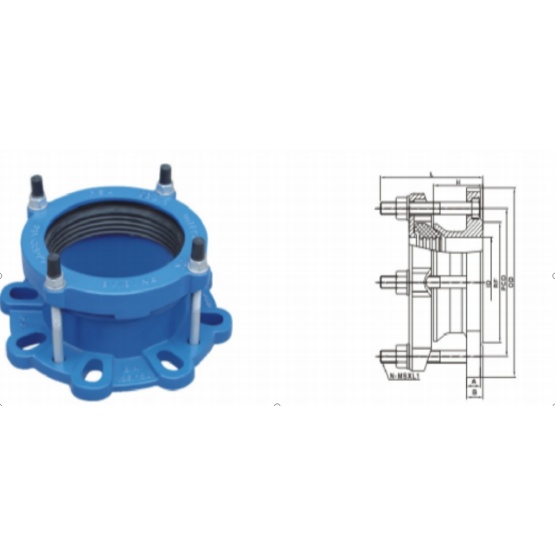

PE flange adpator drawing

PE FLANGE ADAPTOR

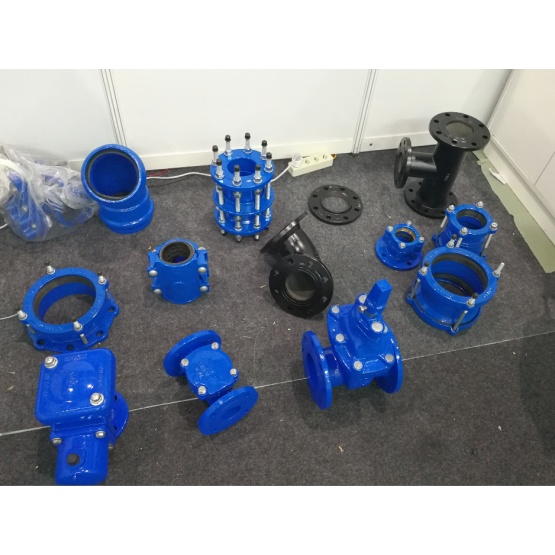

pe flange adaptor photos

Looking for ideal Restraint Flange Adaptor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PE Flange Adaptor are quality guaranteed. We are China Origin Factory of Brass Thrust Ring Flange Adaptor. If you have any question, please feel free to contact us.Looking for ideal Frabricated Mild Steel Coupling Dismantling joints Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Couplings for Water Pipeline Straight Coupling are quality guaranteed. We are China Origin Factory of Fabricated&cast Flange adaptors Step Couplings. If you have any question, please feel free to contact us.
