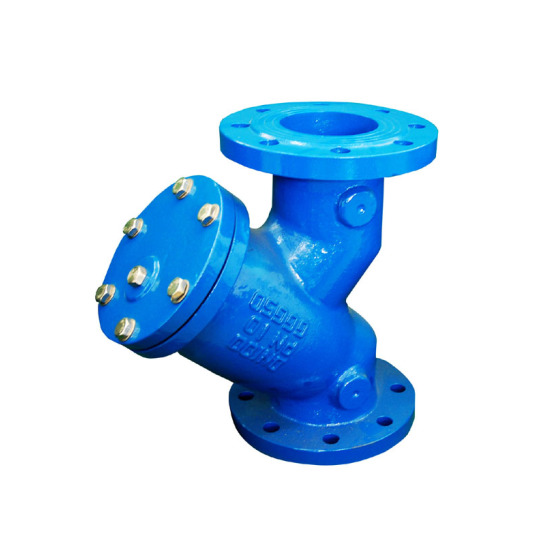

Flanged Y Type Strainers
| Payment Type: | L/C,T/T,D/P |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 20 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: DN50-DN600
Additional Info
Packaging: Wooden Case
Productivity: 5000 sets/month
Brand: PSL
Transportation: Ocean,Air
Place of Origin: Shandong,China
Supply Ability: 5000 sets/month
Certificate: ISO9001:2008
Product Description
About NeoType Water Pipeline Y Type Strainer:
The Y-strainers are installed in water systems to filter out pebbles and other impurities that could damage the equipment. They are designed with focus on easy maintenance and low head loss
SPECIFICATION:
Design standard:DIN3352
Face To Face Length:DIN3203-F1
Elastomeric:EN681-2
Ductile Iron:BS EN1563 EN-GJS-450-10
Coating:WIS4-52-01
Drilling Spec:EN1092-2
|
DIMENSIONS (PN16) |
|||||||
|
Size |
L |
H |
ØD |
D1 |
n-Ød |
Plug |
W.T(kg ) |
|
DN15 |
130 |
65 |
95 |
65 |
4-Ø14 |
1/4" |
2 |
|
DN20 |
150 |
70 |
105 |
75 |
4-Ø14 |
1/4" |
2.3 |
|
DN25 |
160 |
80 |
115 |
85 |
4-Ø14 |
1/4" |
3.2 |
|
DN32 |
180 |
90 |
140 |
100 |
4-Ø19 |
1/4" |
5 |
|
DN40 |
200 |
135 |
150 |
110 |
4-Ø19 |
1/2" |
6.5 |
|
DN50 |
230 |
150 |
165 |
125 |
4-Ø19 |
1/2" |
8.7 |
|
DN65 |
290 |
160 |
185 |
145 |
4-Ø19 |
1/2" |
12 |
|
DN80 |
310 |
200 |
200 |
160 |
8-Ø19 |
1/2" |
19 |
|
DN100 |
350 |
240 |
220 |
180 |
8-Ø19 |
1/2" |
27 |
|
DN125 |
400 |
290 |
250 |
210 |
8-Ø19 |
3/4" |
40 |
|
DN150 |
480 |
330 |
285 |
240 |
8-Ø23 |
3/4" |
58 |
|
DN200 |
600 |
380 |
340 |
295 |
12-Ø23 |
3/4" |
86 |
|
DN250 |
730 |
480 |
405 |
355 |
12-Ø28 |
1" |
127 |
|
DN300 |
850 |
550 |
460 |
410 |
12-Ø28 |
1" |
200 |
|
DN350 |
980 |
661 |
520 |
470 |
16-Ø28 |
2" |
320 |
|
DN400 |
1100 |
739 |
580 |
525 |
16-Ø31 |
2" |
420 |
|
DN450 |
1200 |
830 |
640 |
585 |
20-Ø31 |
2" |
620 |
|
DN500 |
1250 |
910 |
715 |
650 |
20-Ø34 |
2" |
780 |
· Resilient Seated Gate Valves
· Butterfly Valves
· Air Release Valves
· Smart Water Meters and in addition both monitoring and billing platforms
· Dismantling Joints
· Flange Adapters, Straight & Stepped Couplings, Ductile Iron Repair Clamps and Tapping Saddles, Stainless Steel Repair Clamps and Tapping Saddles
· Ductile Iron Flanged Pipework
We are manufacturer of Stainless Steel Valve in China, if you want to buy Air Valve, Check Valve, Butterfly Valve, please contact us.
SHANDONG PIPESOL is a high-tech professional manufacturer for water supply and drainage valves and pipe fittings,the main valves are non rising stem resilient seated wedge gate valves,hivent double orifice air release and vacuum valves,combined valve tees, double eccentric center butterfly valves and so on.Our gate valves can be produced as BS5163 and DIN3352.The hivent double orifice air release and vacuum valve and combined valve tees have all got the national patent.Our products are produced by using high qualtiy raw materials and high-tech technology and strict management,in order to ensure the highest levels of product quality and safety.
