Dismantling Joints Flange Adapters

Product Description

About  50% Tie Rods Double Flanged Dismantling Joint With Gland PN10 PN16:

The Dismantling Joints are double flanged fittings that accommodate up to 100mm (4") longitudinal adjustment and can be locked at the required length with the tie bars supplied. Not only does this system allow for fast, easy maintenance of valves, pumps or meters, it simplifies future pipe work modifications and reduces downtime when changes need to be made.

FEATURES:
Fully corrosion resistant construction
Inside and outside fusion bonded epoxy coating
Light weight ductile iron construction design
Wide joint range
Cold galvanize carbon steel fastener
EPDM gaskets with WRAS approved
SPECIFICATION:
Type Test:EN14525/BS8561
Elastomeric:EN681-2
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01

Drilling Spec:EN1092-2

Connection for DI,Steel pipe ,

Suitable for water and neutral liquids (sewage) application
Working temperature up to 70°C

double flanged dismantling joint drawing

50 dismantling joint list

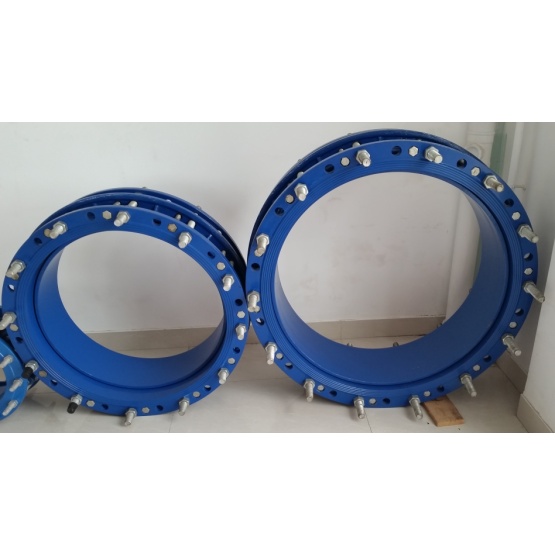

50 dismantling joint photo

We are manufacturer of Stainless Steel Valve in China, if you want to buy Air Valve, Check Valve, Butterfly Valve, please contact us.



SHANDONG PIPESOL is a high-tech professional manufacturer for water supply and drainage valves and pipe fittings,the main valves are non rising stem resilient seated wedge gate valves,hivent double orifice air release and vacuum valves,combined valve tees, double eccentric center butterfly valves and so on.Our gate valves can be produced as BS5163 and DIN3352.The hivent double orifice air release and vacuum valve and combined valve tees have all got the national patent.Our products are produced by using high qualtiy raw materials and high-tech technology and strict management,in order to ensure the highest levels of product quality and safety.

· Resilient Seated Gate Valves

· Butterfly Valves

· Air Release Valves

· Smart Water Meters and in addition both monitoring and billing platforms

· Dismantling Joints

· Flange Adapters, Straight & Stepped Couplings, Ductile Iron Repair Clamps and Tapping Saddles, Stainless Steel Repair Clamps and Tapping Saddles

· Ductile Iron Flanged Pipework
