Basic Info

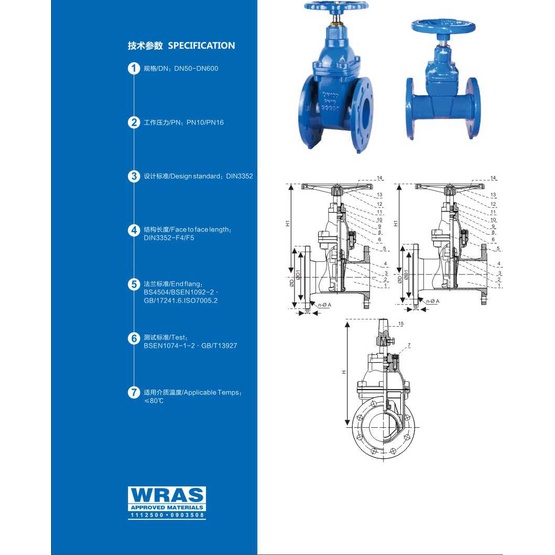

Model No.: DN50 - DN600

Product Description

MATERIAL
1 Body                                      BSEN1563 EN-GJS(QT)-450-10
2 Disc                                       BSEN1563 EN-GJS(QT)-450-10
3 Stem                                     SS420
4 Disc Nut                                 ZCuSn5Pb5Zn5
5 Bonnet Gasket                        EPDM
6 Bonnet                                  BSEN1563 EN-GJS(QT)-450-10
7 Bolt                                      GAL Carbon Steel
8 O-Ring                                  EPDM
9 O-Ring                                  EPDM
10 O-Ring                                EPDM
11 Anti-Dust Ring                      EPDM
12 Washer                               GAL Carbon Steel
13 Bolt                                    GAL Carbon Steel
14 Hand Wheel                        BSEN1563 EN-GJS(QT)-450-10

15 Stem Cap                            BSEN1563 EN-GJS(QT)-450-10

· Resilient Seated Gate Valves

· Butterfly Valves

· Air Release Valves

· Smart Water Meters and in addition both monitoring and billing platforms

· Dismantling Joints

· Flange Adapters, Straight & Stepped Couplings, Ductile Iron Repair Clamps and Tapping Saddles, Stainless Steel Repair Clamps and Tapping Saddles

· Ductile Iron Flanged Pipework

We are manufacturer of Stainless Steel Valve in China, if you want to buy Air Valve, Check Valve, Butterfly Valve, please contact us.

SHANDONG PIPESOL is a high-tech professional manufacturer for water supply and drainage valves and pipe fittings,the main valves are non rising stem resilient seated wedge gate valves,hivent double orifice air release and vacuum valves,combined valve tees, double eccentric center butterfly valves and so on.Our gate valves can be produced as BS5163 and DIN3352.The hivent double orifice air release and vacuum valve and combined valve tees have all got the national patent.Our products are produced by using high qualtiy raw materials and high-tech technology and strict management,in order to ensure the highest levels of product quality and safety.
