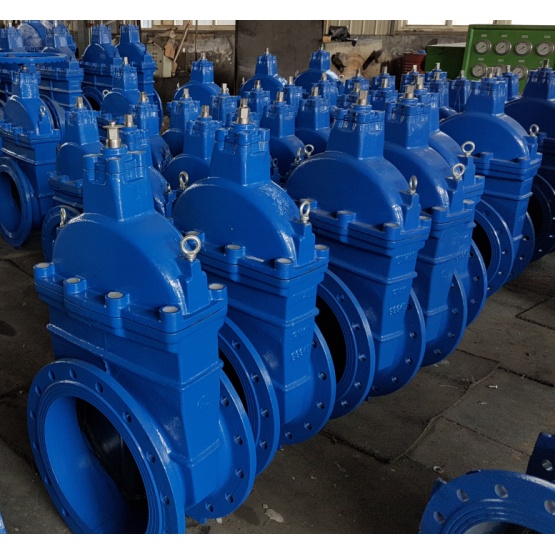

About BS5163 Non Rising Stem Resilient Seated

Basic Info


Driving Mode: Turbine

Connection Form: Flange

Structure: Centre Sealing

Seal Form: Supercharging Pressured Sealed

Valve Stem: Normal

Work Pressure: Low Pressure (Pn<1.6mpa)

Working Temperature: Medium Temperature (120°C

Material of Seal Surface: Soft Sealed

Application: Household Usage

Resilient Seated Gave Valve: DN50-DN600


Product Description

N:DN50-DN600

PN:PN10/PN16

Design Standard:DIN3352

Face To face Length

DIN3352-F4/F5

End Flang:

BS4504/BSEN1092-2.GB/17241.6.ISO7005.2

Test:

BSEN1074-1-2.GB/T13927

Applicable Temps:≤80°

About Magnetic Encrypted Security Gate Valve :

Magnetic encrypted security gate valve is a new high-tech products,which be made with special accessories,be based on probability,and coding by computer.This kind of gate valve is widely used in domestic water and sewage treatment system,is a kind of effective management tools,such as people use water with abandon,don't pay water fee,destroy pipes and valves and so on.This kind of gate valve has excellent anti-theft fuction,which can be self-locked at any position,just be opened with special tools.

Specification:

PN:PN1.0MPa(10kgf/cm2)/PN1.6MPa(16kgf/cm2)

DN:DN40~500mm
Applicable temperature: ≤120℃
Applicable medium:Water,water heating and other non corrosive fluid
Type of drive:Manul

Material:

Body:Ductile iron

Disc:Ductile iron with EPDM/NBR rubber

Anti-theft cap:Stainless steel

Stem:Stainless steel

Bushing:Brass

Nuts:Brass

Sealing:EPDM/NBR

jmfd gate valve data sheet

jmfd gate valve 1

· Resilient Seated Gate Valves

· Butterfly Valves

· Air Release Valves

· Smart Water Meters and in addition both monitoring and billing platforms

· Dismantling Joints

· Flange Adapters, Straight & Stepped Couplings, Ductile Iron Repair Clamps and Tapping Saddles, Stainless Steel Repair Clamps and Tapping Saddles

· Ductile Iron Flanged Pipework

· We carry an extensive stock of these items which are readily available in our warehouse for shipment, and can accommodate both small and large order quantities.

We would welcome the opportunity to provide you with a quotation, and look forward to hearing from you very soon.

We are manufacturer of Stainless Steel Valve in China, if you want to buy Air Valve, Check Valve, Butterfly Valve, please contact us.


SHANDONG PIPESOL is a high-tech professional manufacturer for water supply and drainage valves and pipe fittings,the main valves are non rising stem resilient seated wedge gate valves,hivent double orifice air release and vacuum valves,combined valve tees, double eccentric center butterfly valves and so on.Our gate valves can be produced as BS5163 and DIN3352.The hivent double orifice air release and vacuum valve and combined valve tees have all got the national patent.Our products are produced by using high qualtiy raw materials and high-tech technology and strict management,in order to ensure the highest levels of product quality and safety
